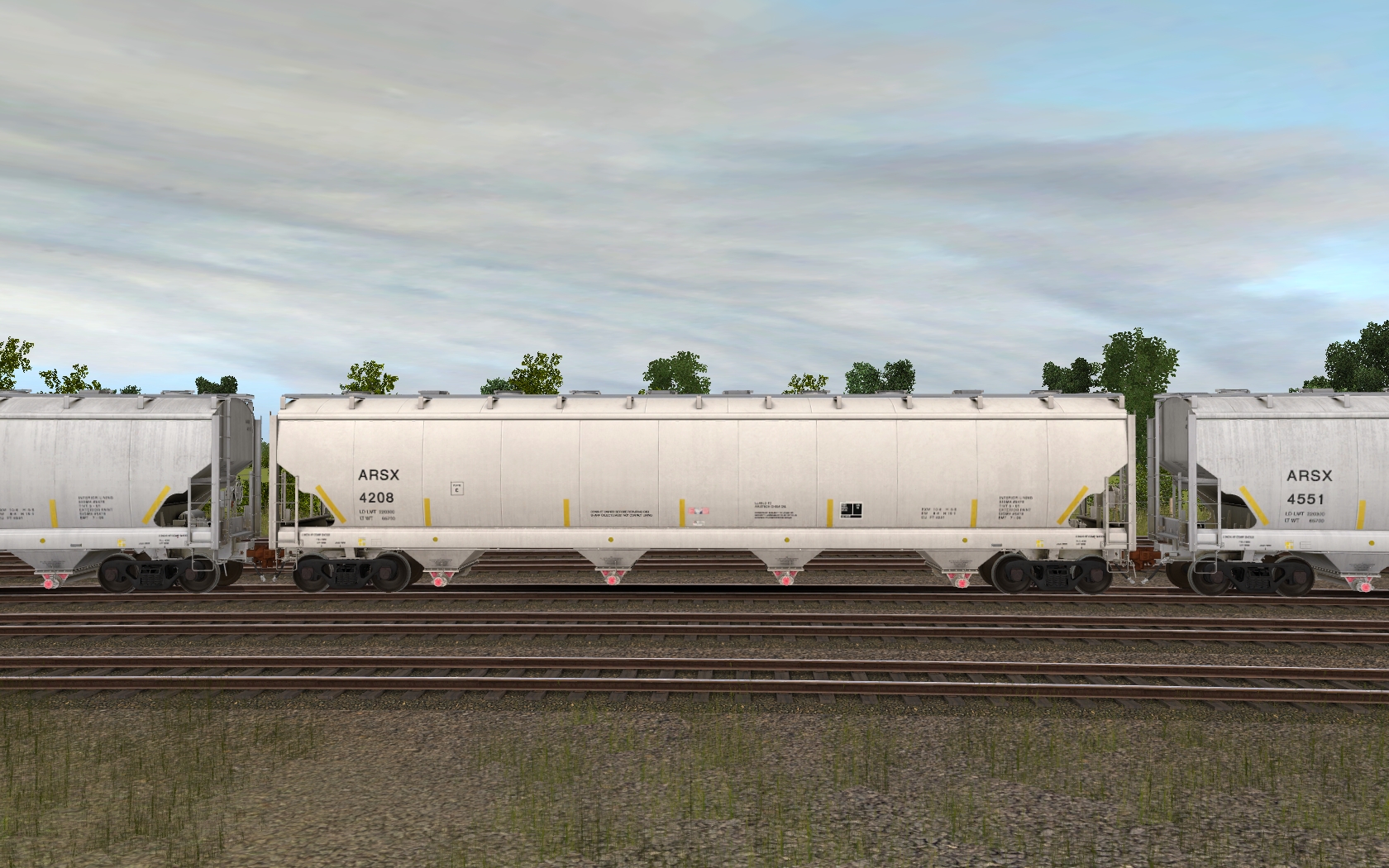

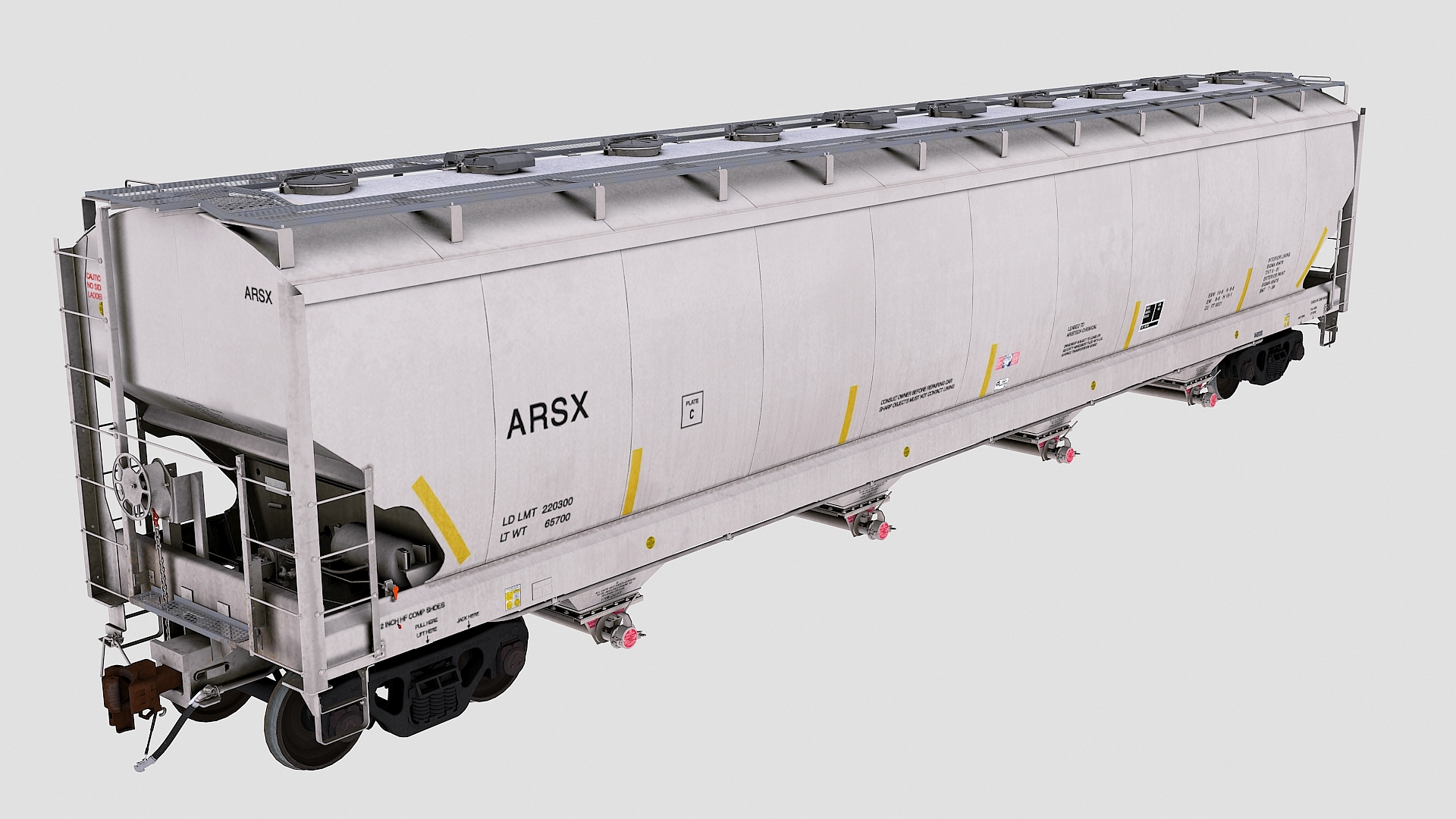

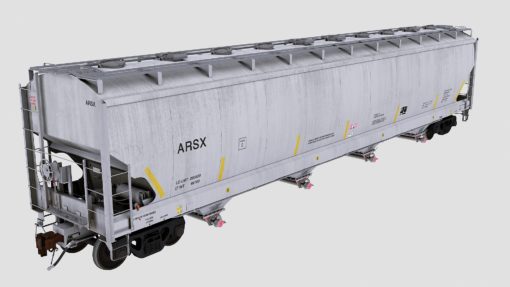

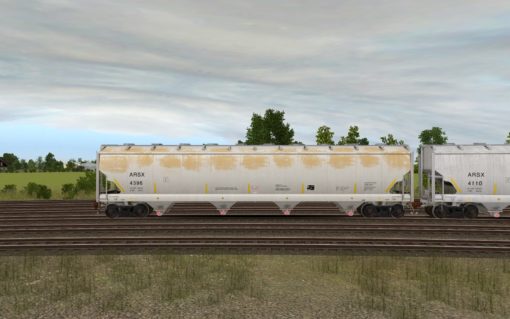

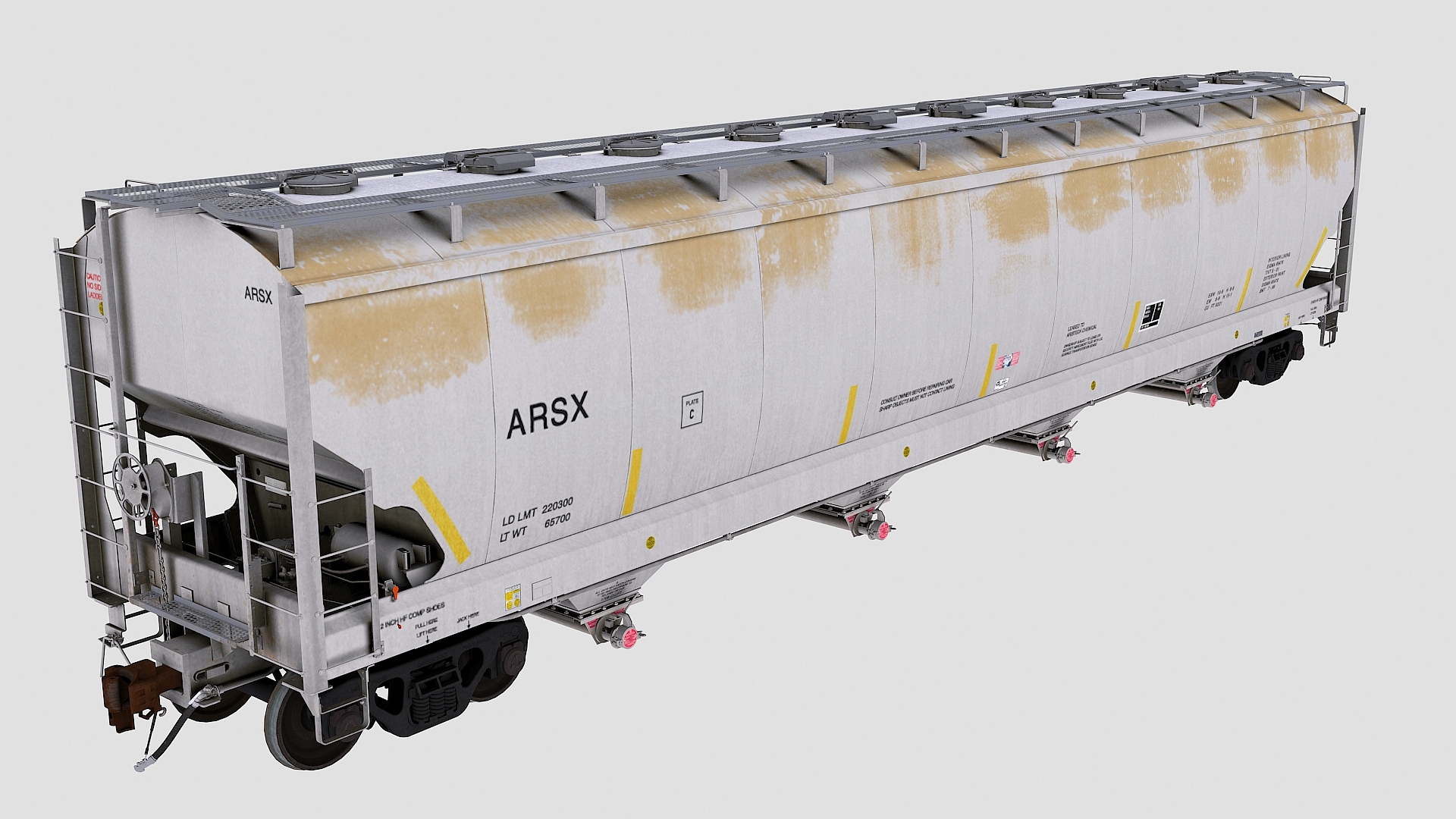

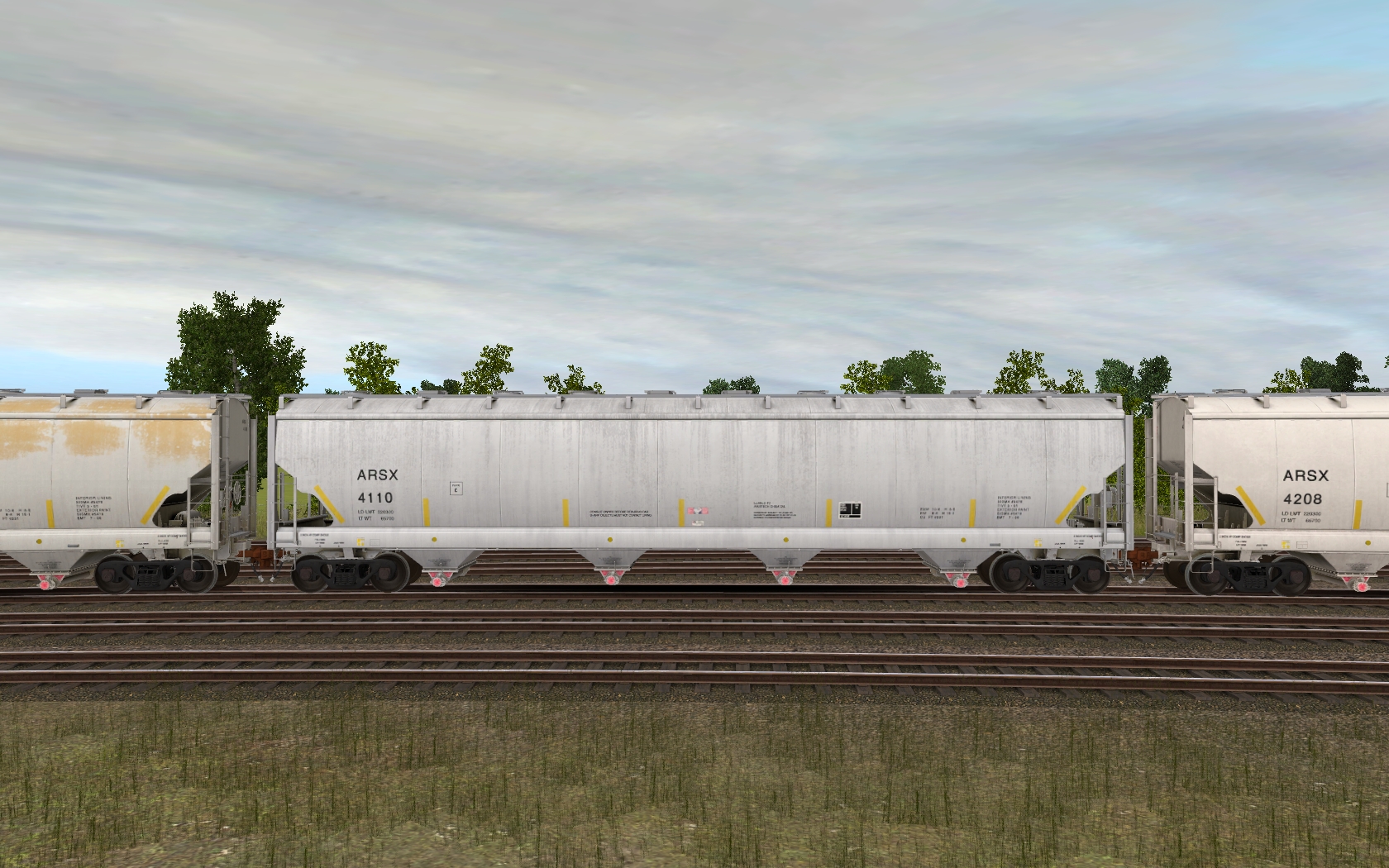

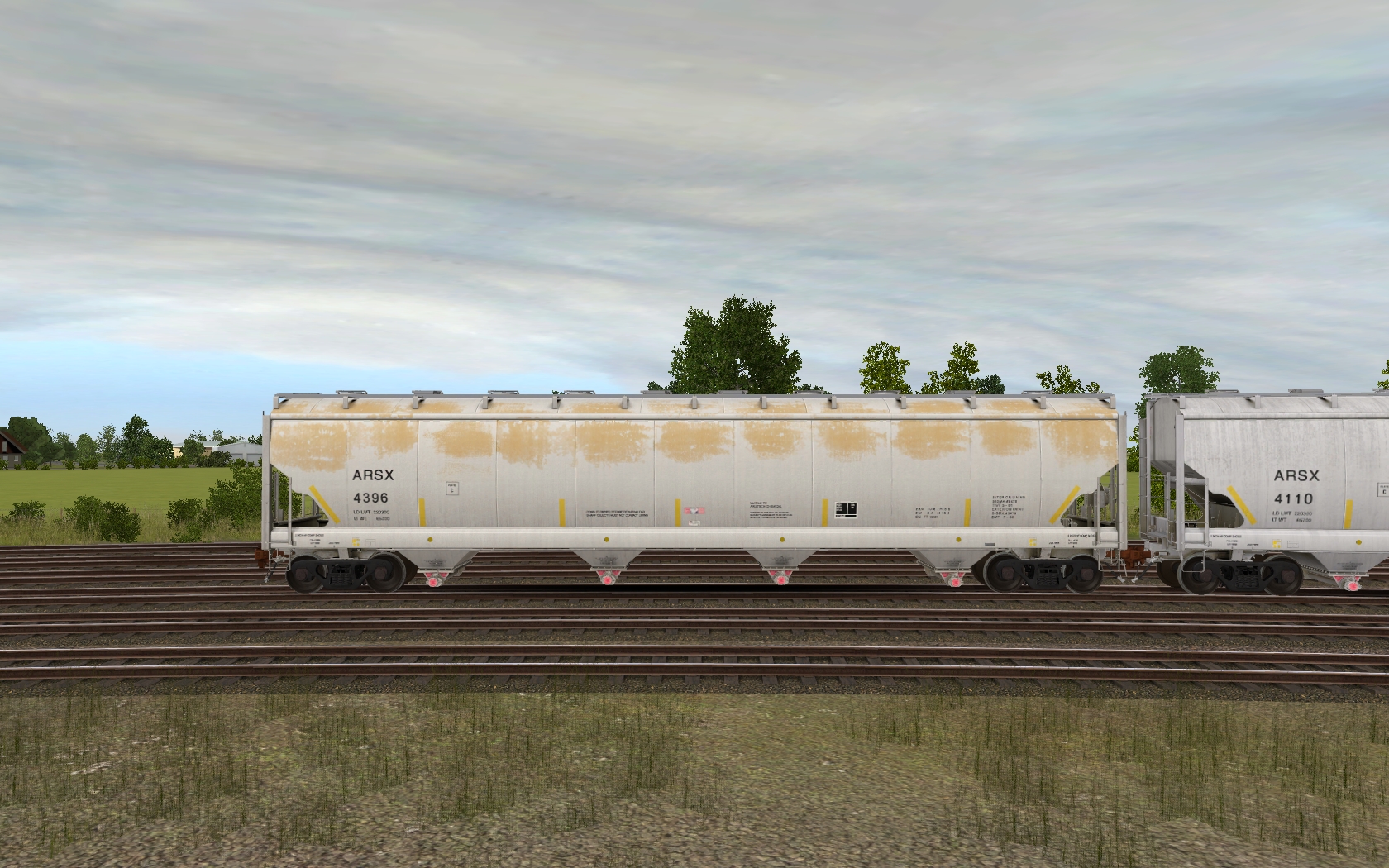

ARSX Trinity 4-Bay Plastics Hopper

Prototype Description:
TrinityRail offers the 6,221 cubic foot pneumatic discharge covered hopper
car optimized to transport petrochemical products. Plastic pellet railcars
are designed to transport, load and unload plastic pellets under precise
specifications to preserve the purity of the load.

These cars have end panels with large cutouts and the end panel generally
follows the angle of the slope sheet and then curves to the side sill just above
the bolster. The cars have a tall side sill with an integrated jack pad. There
are 14 running board supports and 11 side panels. Phase 1 cars have solid side
sills while phase 2 cars have a pulling cutout above the jack location.

Car Specifications:
Reporting Marks: ARSX
Running Number Series: 4001-4600
Owner/Lessor: Aristech Chemical Corporation (Sunoco)
Rail Car Type: Plastics Hopper
Manufacturer: Trinity
Capacity (cubic feet): 6,221
Gate Type: Pneumatic Discharge
Phase: 3

Model Specifications:
Realistically animated hoppers gates and hatches
Detailed rivets, huckbolts, hex bolts, brake wheel, brake chain, and much more
YSD Double Groove discharge gates pneumatic discharge gates
Buckeye Barber S-2-D 36 inch trucks with Ellcon National truck mounted brakes

Custom scripting features include:
Opening and closing of gates and hatches
Prototypical, randomly assigned running numbers
3 random skins

LODs – number of polys
LOD1 — 176,558
LOD2 — 98,667
LOD3 — 18,043
LOD4 — 3,584

Includes products:
Polyethylene Resin, Petroleum Resin Granule, Plastic Granules,
Plastic Pellets, Polyethylene, Polypropylene, Polystyrene, Polyurethane,
PVC Pellets, Resin Powder, Synthetic Fiber, Terpene Resin, Synthetic Resin
